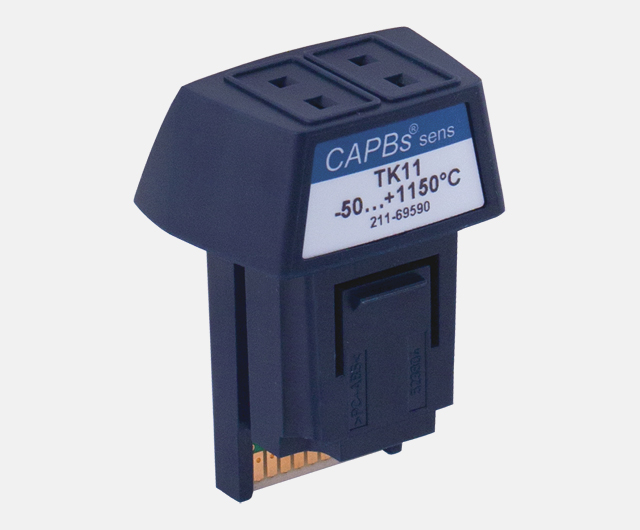

Temperature transmitter with two standardised temperature socket type K. This allows for the connection of all type K temperature probes.
Application

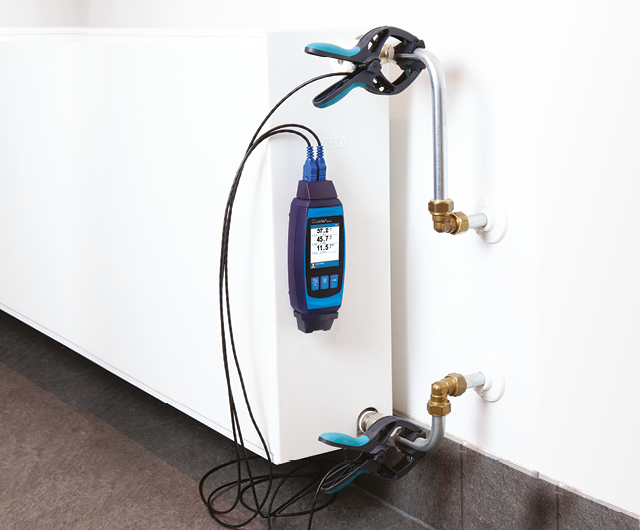

Temperature transmitter with two standardised temperature sockets type K. This allows for the connection of all type K two-pole thermocouples and temperature probes (for example, the complete temperature probe range). In conjunction with BLUELYZER® ST, it is, for example, possible to measure up to four temperature values.
| General data |
|
| Dimensions H x W x D |
58 x 42 x 35 mm |
| Weight |
approx. 22 g |
| Measurement units |
°C, °F |
| Measuring range |
-50 to 1,150 °C |
| Accuracy |
±1.5 °C |
| Resolution |
0.1 °C |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |
2 x type K plug |
| Battery life |
45 h / 32 h (rechargeable) |
| BlueLine CAPBs program |
Temperature, Differential temperature, Legionella |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
 |
