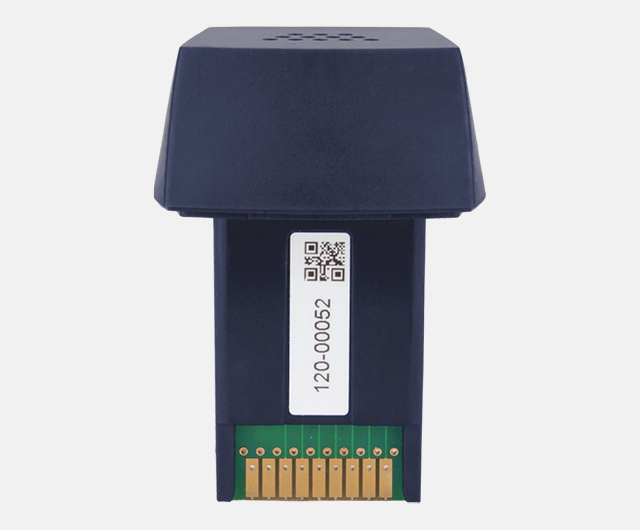

Sensor unit for fast and reliable measurements of VOCs (volatile organic compounds) and CO2 changes in ambient air.
Application
Sensor unit for fast and reliable measurement of VOCs (volatile organic compounds) and CO2 changes in ambient air. The gas concentration is displayed by the evaluation unit as CO2 (ppm) and TVOC (ppb) quasi as a "relative equivalent". The CAPBs® measuring unit can trigger a visual and an audible signal. The alarm threshold can be adjusted as required.
| General data |
|
| Dimensions H x W x D |
58 x 42 x 35 mm |
| Weight |
approx. 20 g |
| Measurement units |
TVOC in ppm, CO2eq in ppm |
| Measuring range |
450 to 2000 ppm CO2-equivalents (relative) |
| 125 to 600 ppb TVOC-equivalents (relative) |
|
| Measurement interval |
continuous |
| Resolution |
1 ppb / 1 ppm |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Battery life |
60 h / 42 h (rechargeable) |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
 |
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.
The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.

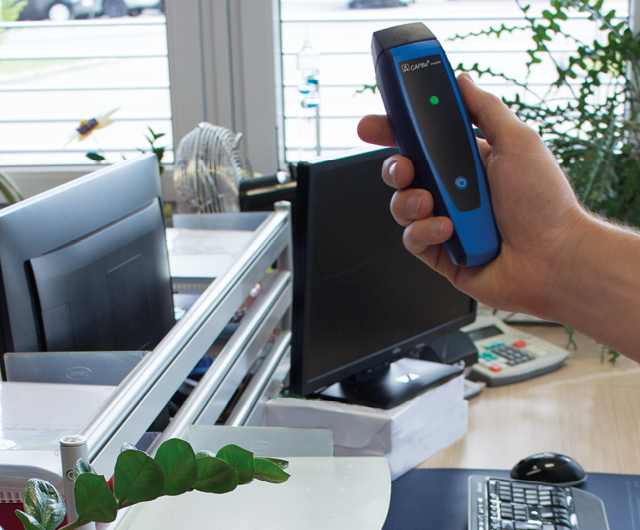

Universal base handle for all CAPBs® sens sensor units, with direct Bluetooth® connection to the EuroSoft® live app, which is available on both the Android and iOS platforms.
