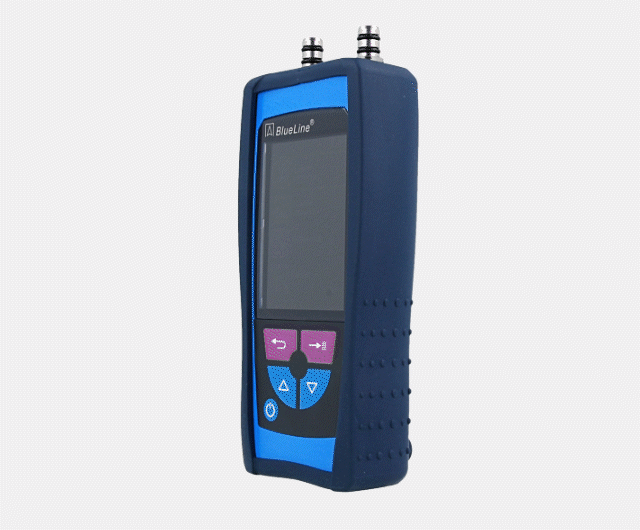

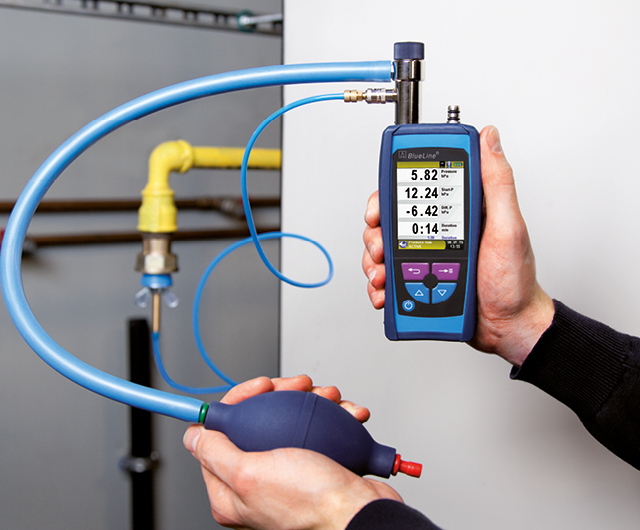

The state of the art BlueLine® S4600 ST pressure measuring instruments feature Bluetooth®, QR code and microSD for data transmission.

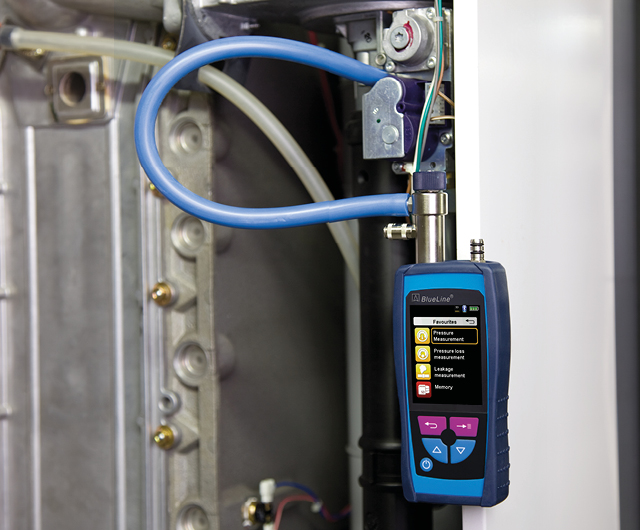

The series S4600 ST pressure measuring instruments are ideal for measurements and adjustments under field conditions. Colour-coded, clearly structured menus ensure maximum ease of use of this high-quality manifolds. High measuring accuracy, user-friendliness and reliability are some of the outstanding features of this innovative product. Professional instrument for installation, maintenance and service of gas and water pipes. Specially designed to carry out reliable leak tightness checks, load tests and serviceability tests in accordance with existing rules and regulations.

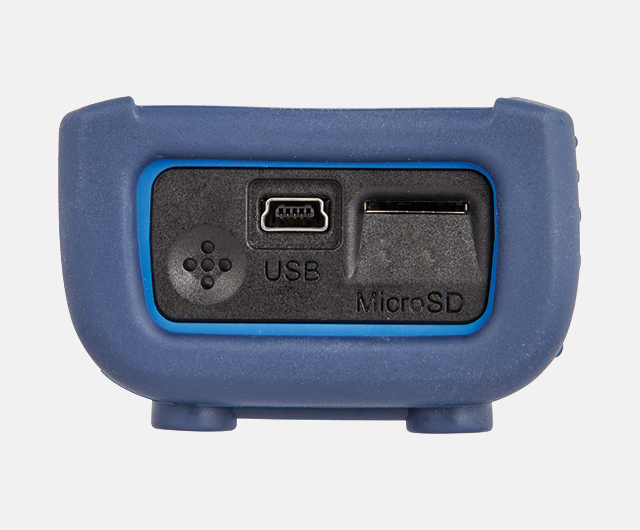

The S4600 ST pressure meters use the latest data transmission technologies for easy documentation of the measured values (e.g. PDF reports). The measurement results are transferred reliably and fast to tablets, smartphones or PCs with Bluetooth® or QR code. The EuroSoft® connect App is the ideal tool when it comes to evaluating, storing and viewing the measurement results on your device. EuroSoft® connect is available for Android, iOS and Windows. In addition, the S4600 ST series instruments feature a microSD slot so that you can save your measurement results on microSD card as well.
| Pressure meter S4600 ST series |
||
| M066050116 | S4602 ST |
up to 20 hPa |
| M066010116 |
S4601 ST |
up to 150 hPa |
| M066020116 |
S4610 ST |
up to 1 bar |
| M066030116 |
S4650 ST |
up to 5 bar |
| M066040116 |
S4680 ST |
up to 8 bar |
| General data | |
| Dimensions H x W x D | 143 x 66 x 37 mm |
| Weight |
approx. 228 g |
| Material housing |
Plastic (PA) |
| Display type |
2.8" TFT (240 x 320 pixels) |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Data interface |
Bluetooth® QR code generator microSD card Wireless infrared connection with optional EUROprinter |
| Power supply |

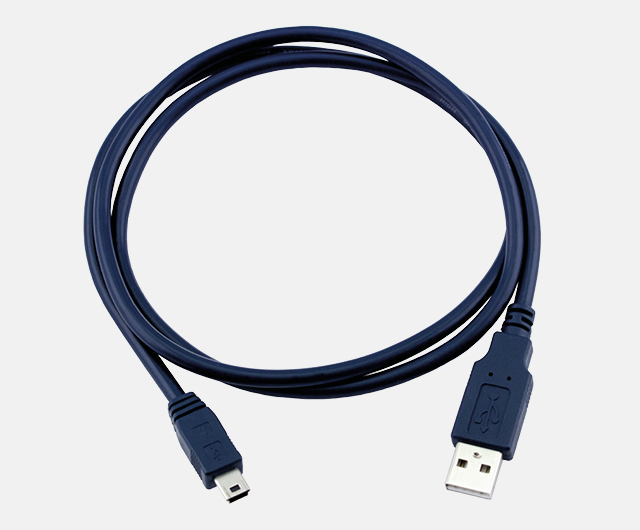

Mini USB mains unit (5 V) |
| Battery type |
rechargeable lithium-ion battery 3.6 V / 1,800 mAh |
| Memory type |
optional microSD card up to 16 GB |
| Ingress protection rating |
IP42 (EN 60529) |
| Barometric pressure |
500 to 1150 hPa |
| Technical data pressure I |
|||
| Model |
Measuring range
|
Max. overpressure
|
Response delay (t90)
|
| S4602 ST |
±20 hPa Pitot: 0.5 to 50 m/s |
250 hPa |
< 10 seconds Pitot: < 20 seconds |
| S4601 ST |
±150 hPa Pitot: 2.0 to 50 m/s |
1.35 bar |
< 10 seconds Pitot: < 20 seconds |
| S4610 ST |
±1 bar |
3.5 bar |
< 10 seconds |
| S4650 ST |
±5 bar |
16 bar |
< 10 seconds |
| S4680 ST |
±8 bar |
16 bar |
< 10 seconds |
| Technical data pressure II |
|||
| Model |
Accuracy
|
Resolution
|
Connection type
|
| S4602 ST |
±0.003 hPa ±0.50 % RDG ±1 digit Pitot: ±0.3 m/s |
0.001 hPa Pitot: 0.1 m/s |

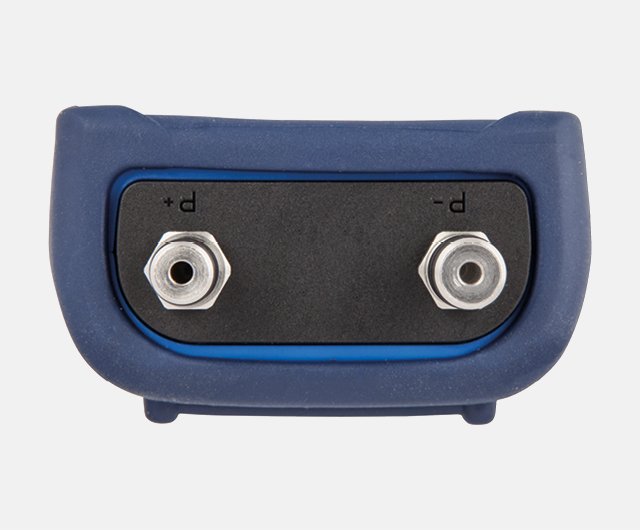

2x Ø 8 mm |
| S4601 ST |
±0.03 hPa ±0.50 % RDG ±1 digit Pitot: ±0.8 m/s |
0.01 hPa (< 100) 0.1 hPa (> 100) Pitot: 0.1 m/s |
2x Ø 8 mm |
| S4610 ST |
±0.3 hPa ±0.50 % RDG ±1 digit |
0.1 hPa (< 1,000) 1 hPa (> 1,000) |
2x Ø 8 mm |
| S4650 ST |
±5 hPa ±0.50 % RDG ±1 digit |
0.1 hPa (< 1,000) 1 hPa (> 1,000) |
2x Ø 8 mm |
| S4680 ST |
±5 hPa ±0.50 % RDG ±1 digit |
1 hPa | 2x Ø 8 mm |
|
Product flyer
|
Connection overview
|
||
 |
 |
 |
|
The free EuroSoft® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.

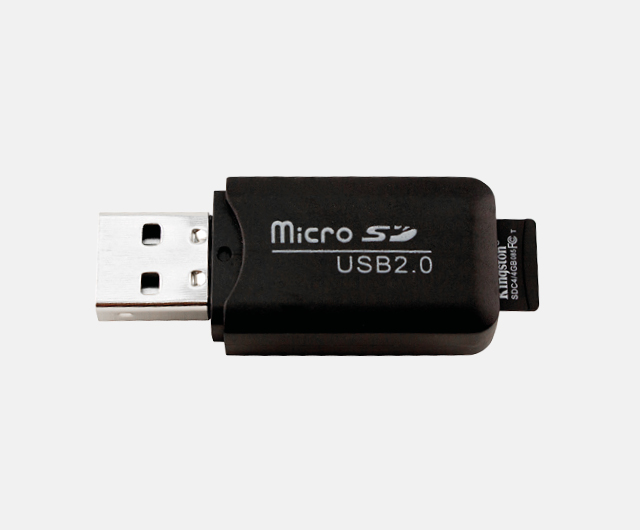

The EuroSoft® connect software allows you to transmit measured values to the PC via microSD card and control the instrument remote via Bluetooth®.
High pressure tightness set for test pressure of up to 15 bar
Pressure connection hose 1200 mm with coupling DN5 and D8 connector
High pressure tightness set for test pressure of up to 18 bar.
Connection set for differential pressure measurement for handheld measuring instruments.
Compact infrared high speed thermal printer with magnets on the rear side

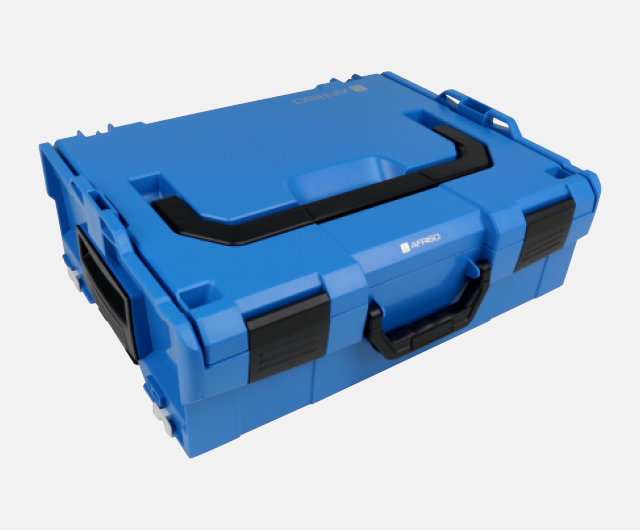

for all the BlueLine® S4600 ST series instruments, a CAPBs®, a EUROprinter and various accessories

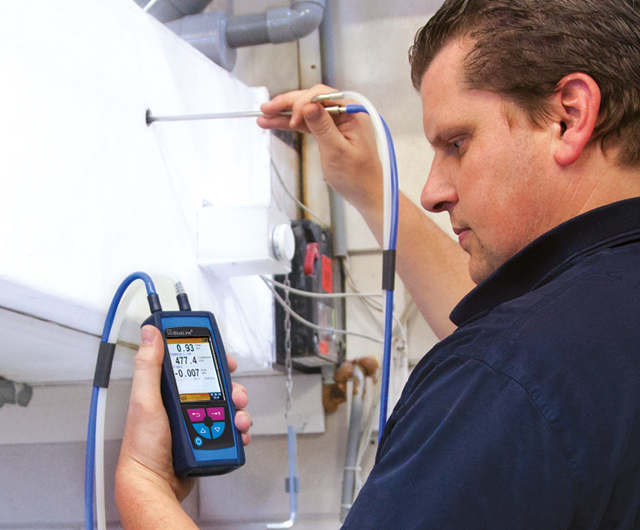

For measuring flow velocities, e.g. in ventilation ducts or process air
