Data logger set for differential temperature with two standardised temperature sockets type K, compatible to all type-K temperature probes.
Description
CAPBs® d-set TK11 - temperature logger with two standardised temperature sockets type K. This allows for the connection of all type K two-pole thermocouples and temperature probes (for example, the complete temperature probe range).
| Scope of delivery |
|

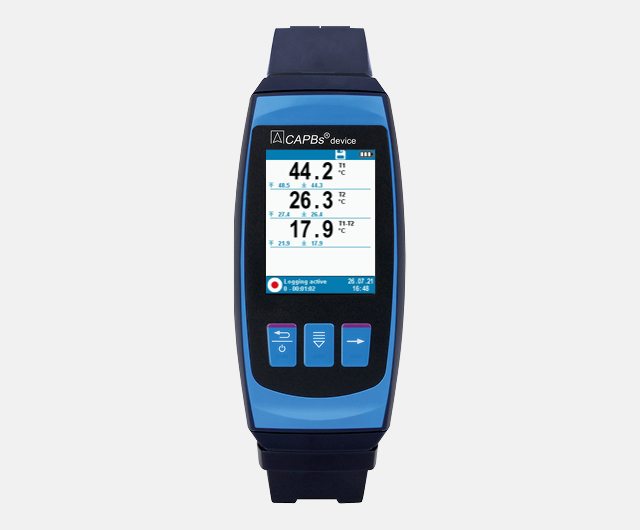

| M093000010 | CAPBs® device with cover cap |
| M094003911 |

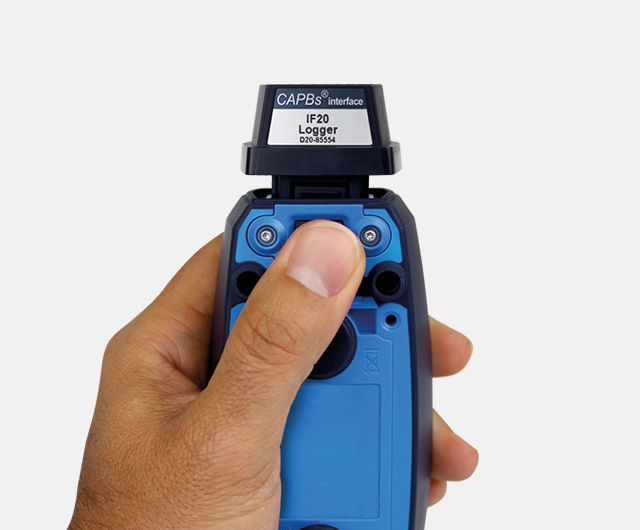

CAPBs® interface logger |
| 524697 |
Data cable |
| 523493 |
USB mains unit |
| M090000910 |
CAPBs® sens TK11 |
| 523976 | L-Boxx mini |
*Note: Type-K probes are not included
| General data |
|
| Dimensions H x W x D |
55 x 257 x 150 mm |
| Weight |
approx. 715 g |
| Measurement units |
°C, °F |
| Measuring range |
-50 to 1,150 °C |
| Accuracy |
±1.5 °C |
| Resolution |
0.1 °C |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |
2 x type K plug |
| Battery life |
45 h / 32 h (rechargeable) |
| Memory | 256 MB (600,000 readings) |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.
This temperature measuring instrument provides datalogging on microSD card. Also Bluetooth® or QR Code for data transmission to the EuroSoft® connect App.

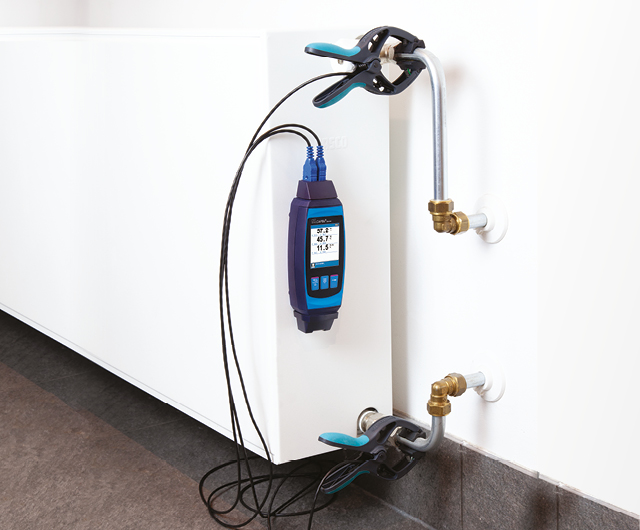

Robust and high quality flow and return temperature measurement set.
