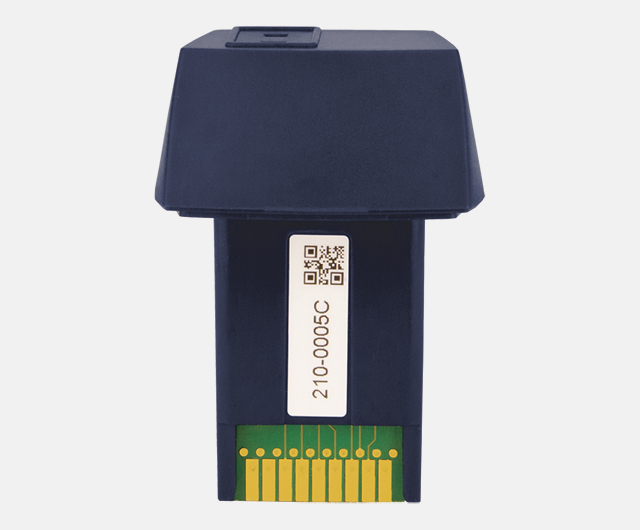

Temperature transmitter with standardised temperature socket type K. This allows for the connection of all type K temperature probes.
Application
Temperature transmitter with standardised temperature socket type K. This allows for the connection of all type K two-pole thermocouples and temperature probes (for example, the complete temperature probe range).
| General data |
|
| Dimensions H x W x D |
58 x 42 x 35 mm |
| Weight |
approx. 22 g |
| Measurement units |
°C, °F |
| Measuring range |
-50 to 1,150 °C |
| Accuracy |
±1.5 °C |
| Resolution |
0.1 °C |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |
type K plug |
| Battery life |
45 h / 32 h (rechargeable) |
| BlueLine CAPBs program |
Temperature, Legionella |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
 |
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.
The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.
Universal base handle for all CAPBs® sens sensor units, with direct Bluetooth® connection to the EuroSoft® live app, which is available on both the Android and iOS platforms.
