The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Bewerbung
Bewerbung

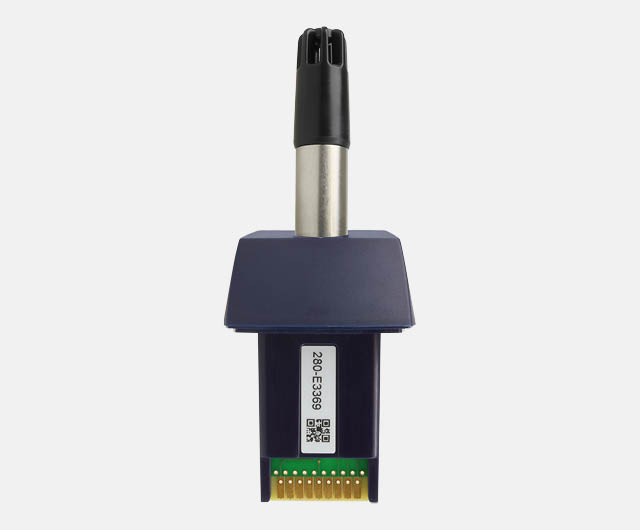

Sensor unit for temperature and relative humidity measurements in ambient air.
Application:
Calculation of absolute humidity and dew point temperature.
| General data |
|
| Dimensions H x W x D |
82 x 42 x 35 mm |
| Weight |
approx. 51 g |
| Measurement units |
Relative humidity in % |
| Absolute humidity in g/m³ |
|
| Dewpoint °C / °F |
|
| Measuring range |
0 to 100 % rh |
| -40 to 80 °C |
|
| Accuracy (20%-80% rh, 0-40°C) |
±3 % rh ±1 digit long-term stability: ±0.5 % rh / year |
| ±0.5 °C ±1 digit |
|
| Resolution |
0.1 % rh |
| 0.1 °C |
|
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Battery life |
45 h / 32 h (rechargeable) |
| BlueLine CAPBs program |
Humidity |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
 |
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.

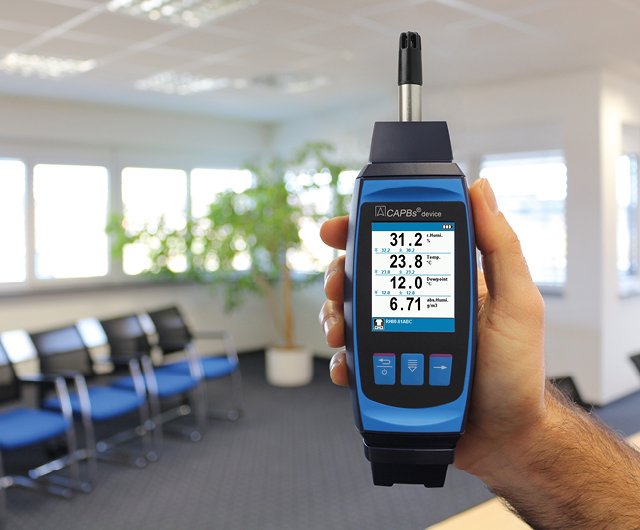

The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.

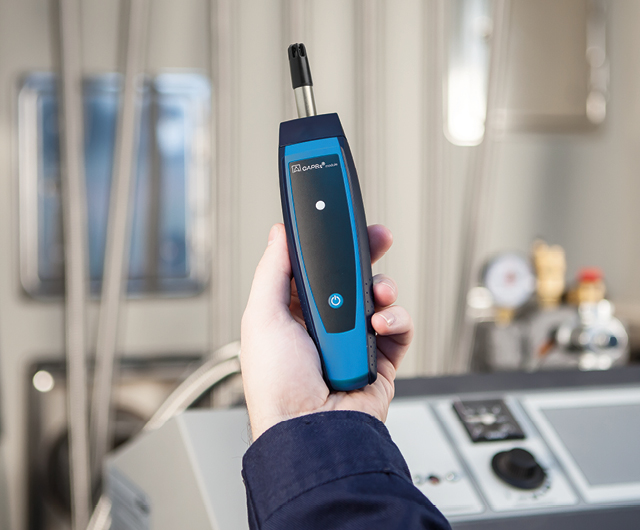

Universal base handle for all CAPBs® sens sensor units, with direct Bluetooth® connection to the EuroSoft® live app, which is available on both the Android and iOS platforms.
