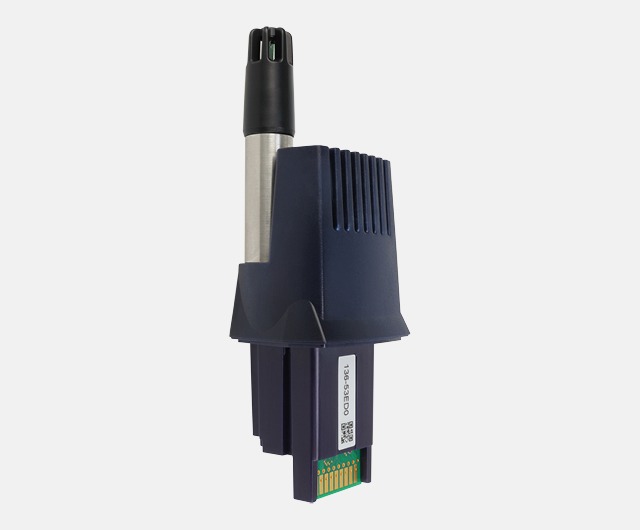

Sensor unit for measurement of carbon dioxide (CO2), humidity and temperature. The highly accurate CO2 infrared sensor has a very low drift and can be adjusted in fresh air.
Application
Thanks to the possibility to conveniently enter the measuring time, it is possible to check and document given CO2 mean values.
| General data |
|
| Dimensions H x W x D |
115 x 42 x 35 mm |
| Weight |
approx. 58 g |
| Measurement units |
ppm, mg/m³, % rh, °C, °F |
| Measuring range |
0 to 10,000 ppm |
| 0 to 100 % rh |
|
| -40 to 125 °C |
|
| Accuracy (20%-80% rh) |
±(70 ppm + 3% RDG) |
| ±3 % rh at 25 °C, long-term stability: ±0.5 %rh / year |
|
| ±2 °C |
|
| Resolution |
1 ppm |
| 0.1 % rh |
|
| 0.1 °C |
|
| Operating temperature |
0 to 50 °C |
| Storage temperature |
-20 to 50 °C |
| Battery life |
12 h / 10 h (rechargeable) |
| BlueLine CAPBs program |
CO2 ambient measurement, Humidity measurement |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
 |
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.

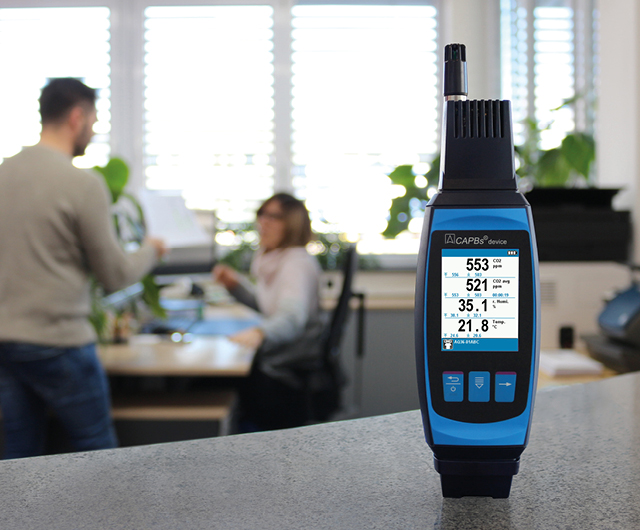

The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.

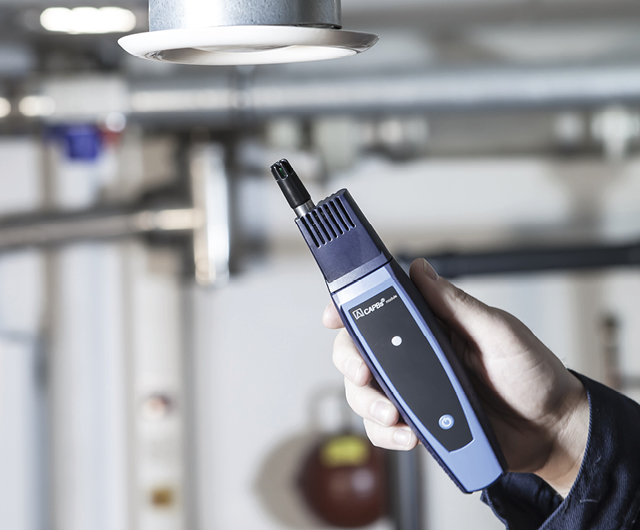

Universal base handle for all CAPBs® sens sensor units, with direct Bluetooth® connection to the EuroSoft® live app, which is available on both the Android and iOS platforms.
