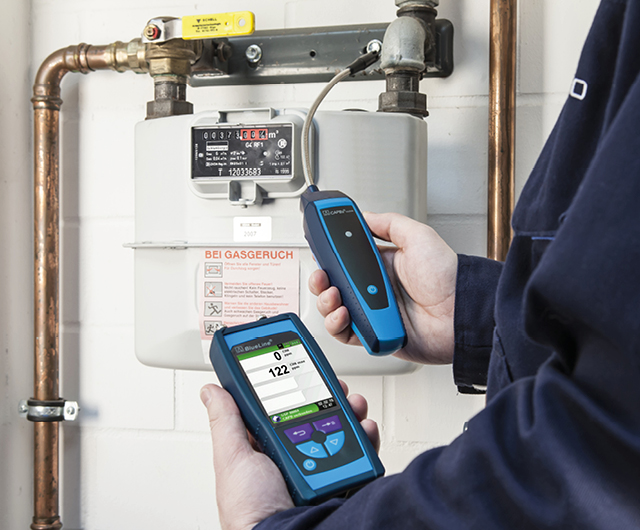

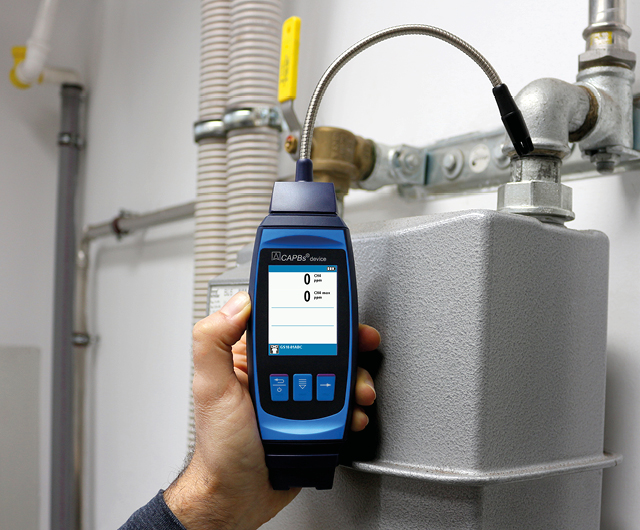

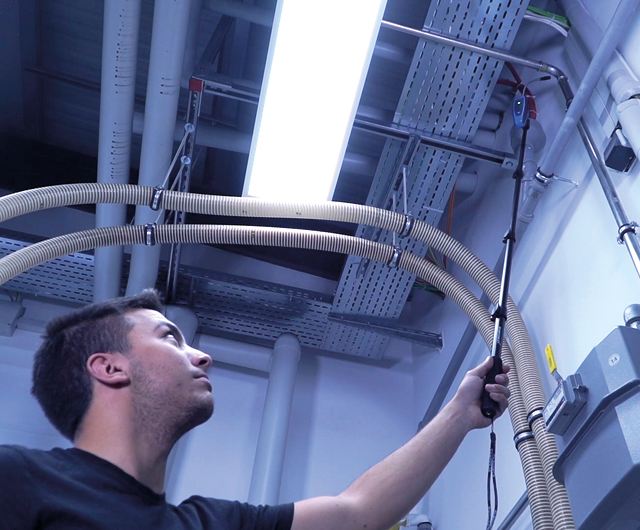

Sensor unit for fast and reliable gas leak detection. The flexible probe makes use in areas that are difficult to access possible.
Application
The gas concentration is displayed by the evaluation unit in ppm; the CAPBs® measurement unit provides an audible signal. The alarm threshold can be adjusted as required. Due to the base calibration for methane, a wide range of flammable gases is detectable. The anti-poisoning protection function for the sensor ensures a long service life.
| General data |
|
| Dimensions H x W x D |
290 x 42 x 35 mm |
| Weight |
approx. 51 g |
| Measurement units |
ppm |
| Measuring range |
0 to 2000 ppm CH4 |
| Accuracy |
±500 ppm |
| Resolution |
10 ppm |
| Operating temperature |
0 to 40 °C |
| Operation humidity |
5 to 95 % rh |
| Storage temperature |
-20 to 50 °C |
| Battery life |
12 h / 8 h (rechargeable) |
| BlueLine CAPBs program |
Gas leakage |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
 |
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.
The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.
Universal base handle for all CAPBs® sens sensor units, with direct Bluetooth® connection to the EuroSoft® live app, which is available on both the Android and iOS platforms.
