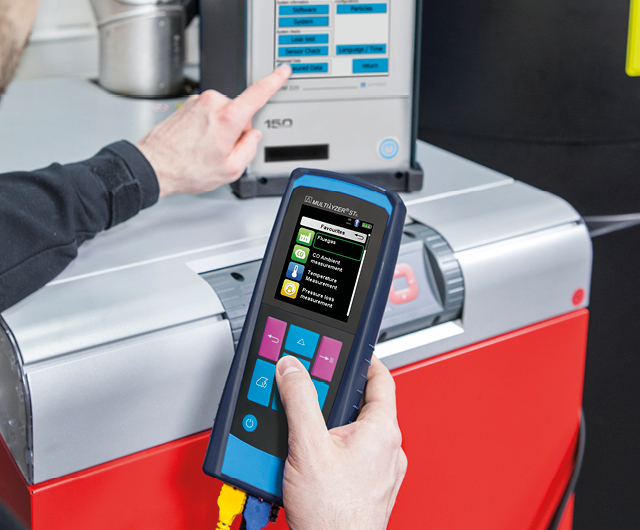

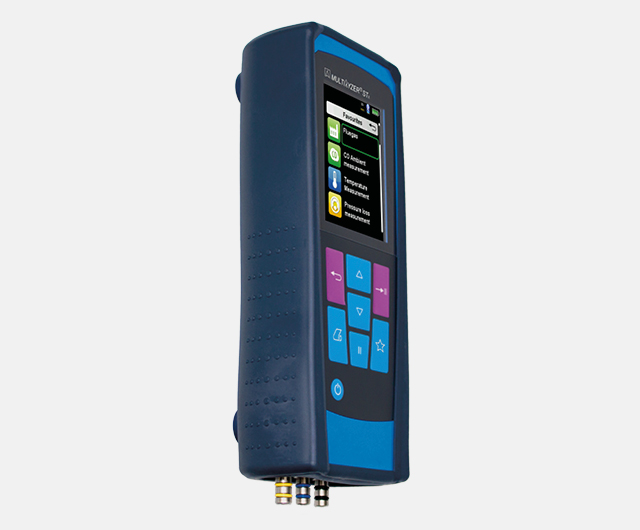

The TÜV-tested MULTILYZER® STx is a handheld measuring instrument for industrial combustion, emission and process monitoring.
MULTILYZER® STx is a handheld measuring instrument for industrial combustions, emission- and process monitoring. Colour-coded, clearly structured menus ensure maximum ease of use of this high-quality flue gas analyzer. The measured data and calculations are clearly presented. High measuring accuracy, user-friendliness and reliability are some of the outstanding features of this innovative product. Accurate measurements of O2, CO/H2, CO40.000, NO, NO2, SO2, dust, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point, NOx and CO2.

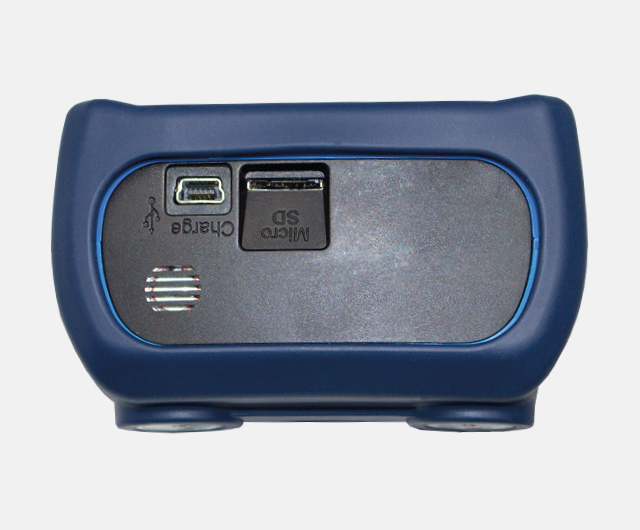

The MULTILYZER® STx residental combustion analyzer use the latest data transmission technologies for easy documentation of the measured values (e.g. PDF reports). The measurement results are transferred reliably and fast to tablets, smartphones or PCs with Bluetooth® or QR Code. The EuroSoft® connect App is the ideal tool when it comes to evaluating, storing and viewing the measurement results on your device. EuroSoft® connect is available for Android, iOS and Windows. In addition, the MULTILYZER® STx measuring instruments feature a microSD slot so that you can save your measurement results on microSD card as well.
| General data |
|
| Dimensions H x W x D |
220 x 90 x 53 mm |
| Weight |
between 625 and 685 g |
| Material housing |
Plastic (PA) |
| Display type |
3.5" TFT (240 x 320 pixels) |
| Air pressure range | 750 to 1100 hPa |
| Humidity range | 20 to 80 % rh |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Data interface |
Bluetooth® QR code generator microSD card Wireless infrared connection with optional EUROprinter |

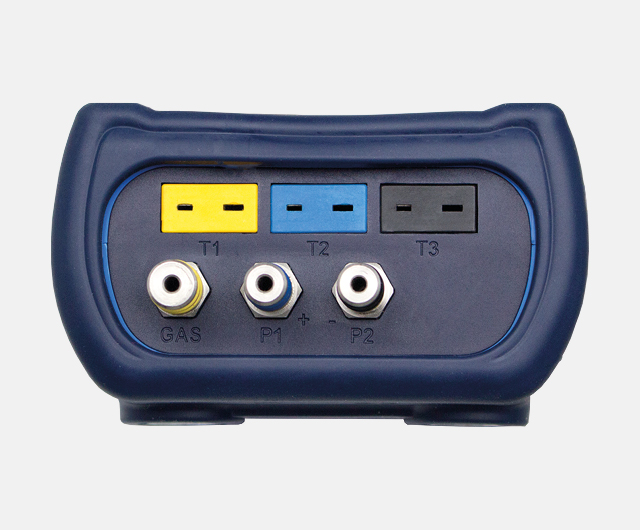

| Connection | Gas: 1x Ø 8 mm |
| Pressure: 2x Ø 7 mm | |
| Temperature: 3x Thermocouple socket | |
| Power supply |
Mini USB mains unit (5 V) |
| Battery type |
rechargeable lithium-ion battery 3.6 V / 2,900 mAh |
| Memory type |
optional microSD card up to 16 GB |
| Ingress protection rating |
IP42 (EN 60529) |
| O2 (oxygen) |
|
| Measuring range |
0 to 21.0 vol.-% |
| Accuracy |
±0.2 vol.-% RDG |
| Resolution |
0.1 vol.-% |
| Response delay (t90) |
< 30 seconds |
| CO (carbon monoxide) with H2-compensation |
|
| Measuring range |
0 to 10,000 ppm |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5 % RDG (> 50 ppm) |
|
| Resolution |
1 ppm |
| Response delay (t90) |
< 60 seconds |
| CO2 (carbon dioxide) calculated |
|
| Measuring range |
0 to CO2 max. (depending on fuel) |
| Accuracy |
±0.2 vol.-% |
| Resolution |
0.1 vol.-% |
| Response delay (t90) |
< 30 seconds |
| Flue gas temperature |
|
| Measuring range |
0 to 1,150 °C |
| Accuracy |
±1 °C + 1 digit (< 300 °C) |
| ±1 % RDG (> 300 °C) |
|
| Resolution |
0.1 °C |
| Response delay (t90) |
< 30 seconds |
| Ambient air temperature |
|
| Measuring range |
-20 to 200 °C |
| Accuracy |
±3 °C + 1 digit (-20 to 0 °C) |
| ±1 °C + 1 digit (0.1 to 200 °C) |
|
| Resolution |
0.1 °C |
| Response delay (t90) |
< 30 seconds |
| Draft/differential pressure |
|
| Measuring range |
±70 hPa (draft) |
| ±150 hPa (diff. pressure) |
|
| Accuracy | ±0.02 hPa (< 2.00 hPa) |
| ±1 % RDG (> 2.00 hPa) |
|
| Resolution |
0.01 hPa (< 20 hPa) |
| 0.1 hPa (> 20 hPa) |
|
| Max. overload |
1350 hPa |
| Response delay (t90) |
< 10 seconds |
| Pitot |
|
| Measuring range |
0.5 to 70 m/s |
| Accuracy |
±0.8 m/s |
| Resolution |
0.1 m/s |
| Response delay (t90) |
< 20 seconds |
| Barometric pressure |
|
| Measuring range |
500 to 1.150 hPa |
| Accuracy |
±10 hPa |
| Resolution |
1 hPa |
| Response delay (t90) |
< 60 seconds |
| Option: CO2 (carbon dioxide) | |
| Measuring range | 0 to 20 vol.-% |
| Accuracy | ±1 vol.-% |
| Resolution | 0.1 vol.-% |
| Response delay (t90) | < 60 seconds |
| Option: NO (nitrogen oxide) |
|
| Measuring range |
0 to 5,000 ppm |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5 % RDG ( > 50 ppm) |
|
| Resolution |
1 ppm |
| Response delay (t90) |
< 60 seconds |
| Option: NO2 (nitrogen dioxide) |
|
| Measuring range |
0 to 500 ppm |
| Accuracy |
±10 ppm (< 50 ppm) |
| ±10 % RDG (> 50 ppm) |
|
| ± 5 ppm (< 100 ppm)1) |
|
| ± 5 % RDG (> 100 ppm)1) |
|
| Resolution |
0.1 ppm |
| Response delay (t90) |
< 60 seconds / < 180 seconds1) |
| Option: SO2 (sulfur dioxide) |
|
| Measuring range |
0 to 5,000 ppm |
| Accuracy |
±10 ppm (< 200 ppm) |
| ±5 % RDG (> 200 ppm) |
|
| ±5 ppm (< 200 ppm)1) |
|
| ±5 % RDG (> 200 ppm)1) |
|
| Resolution |
1 ppm |
| Response delay (t90) |
< 60 seconds / < 180 seconds1) |
| Option: COhigh (carbon monoxide) |
|
| Measuring range |
0 to 4.0 vol.-% (= 40,000 ppm) |
| Accuracy |
±10 ppm |
| ±5 % RDG |
|
| Resolution |
0.001 vol.-% |
| Response delay (t90) |
< 60 seconds |
| Option: NOlow (nitrogen oxide) |
|
| Measuring range |
0 to 300 ppm |
| Accuracy |
±2 ppm (< 40 ppm) |
| ±10 % RDG (> 40 ppm) |
|
| Resolution |
0.1 ppm |
| Response delay (t90) |
< 60 seconds |
| Option: SO2x (sulfur dioxide) |
|
| Measuring range |
0 to 2,000 ppm |
| Accuracy |
±5 ppm (< 200 ppm) |
| ±10 % RDG (> 200 ppm) |
|
| Resolution |
0.1 ppm |
| Response delay (t90) |
< 60 seconds / < 180 seconds1) |
1) with extended flue gas treatment (e.g. MAXISYSTEM ST)
|
