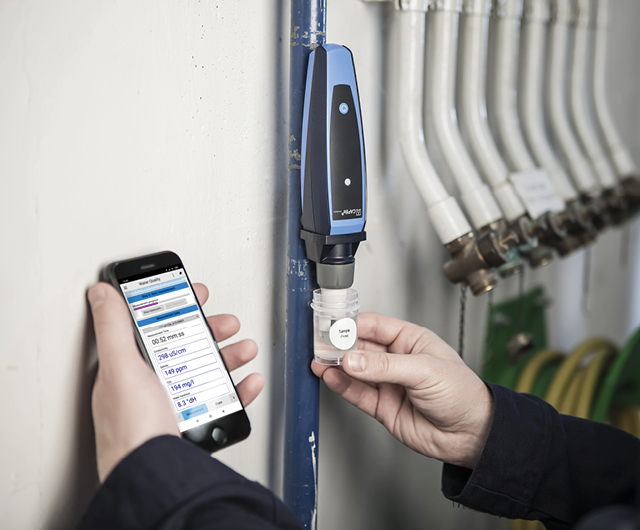

The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Bewerbung
Bewerbung
Sensor unit for determining water quality and assessing the system water in heating systems. Measurement of pH, electrical conductivity and temperature.
Application
CAPBs® sens WQ10 simultaneously determines the pH value, the electrical conductivity (μS/cm) and hardness (°dH) with a single measurement. In addition, the TDS value (total dissolved solids in the water), salinity and temperature can be measured. Thanks to automatic measuring range switching, the conductivity can be measured with a high measuring accuracy within a large measuring range.
| General data |
||
| Dimensions H x W x D |
130 x 43 x 36 mm |
|
| Weight |
approx. 56 g |
|
| Measurement units |
German hardness: |
°dH |
| Englisch degree: |
°e |
|
| French degree: |
°fH |
|
| Russian degree: | °rH |
|
| CaCO3: |
ppm |
|
| Earth alkali ions: |
mg/l, mmol/l |
|
| Measuring range |
Conductivity: |
0 to 50.000 μS/cm |
| Salinity: |
0 to 25.000 ppm |
|
| TDS: |
0 to 50.000 mg/l |
|
| pH: |
0 to 14 pH |
|
| Temperature: |
-5 to +60 °C |
|
| Accuracy |
Conductivity: |
±20 μS/cm (up to 199 μS/cm) |
| ±25 μS/cm (200 to 499 μS/cm) |
||
| ±100 μS/cm (500 to 1999 μS/cm) |
||
| ±0.4 mS/cm (2.00 to 19.99 mS/cm) |
||
| ±1 mS/cm (20.00 to 50.00 mS/cm) |
||
| pH: |
±0.1 pH |
|
| Temperature: |
±0.5 °C |
|
| Resolution |
Conductivity: |
1 μS/cm |
| 0.1 mS/cm |
||
| Salinity: |
0.1 ppm |
|
| 0.01 ppt |
||
| TDS: |
1 mg/l | |
| 0.01 g/l |
||
| pH: |
0.01 pH |
|
| Temperature: |
0.1 °C |
|
| 0.1 °F |
||
| Operating temperature |
0 to 40 °C |
|
| Medium temperature |
+10 to 40 °C |
|
| Storage temperature |
0 to 50 °C |
|
| Battery life |
45 h / 40 h (rechargeable) | |
| BlueLine CAPBs program |
EC/pH Messung |
|
| Directives and standards |
2014/30/EU (CE) |
|
| 2011/65/EG (RoHS) |
||
| 2012/19 EU (WEEE) |
||
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
|
