Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.
Bewerbung
Bewerbung

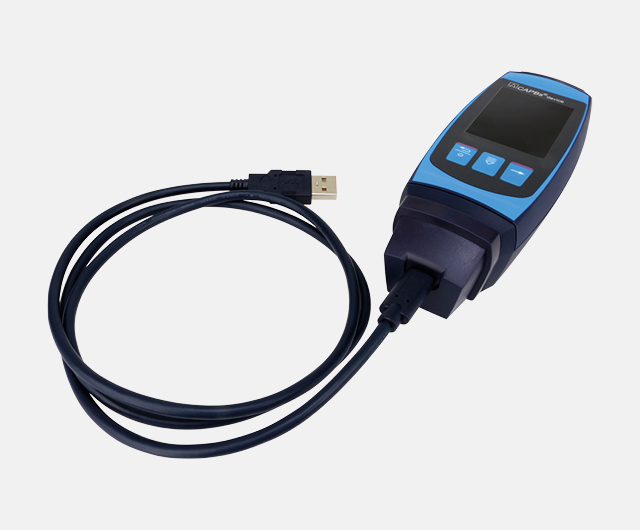

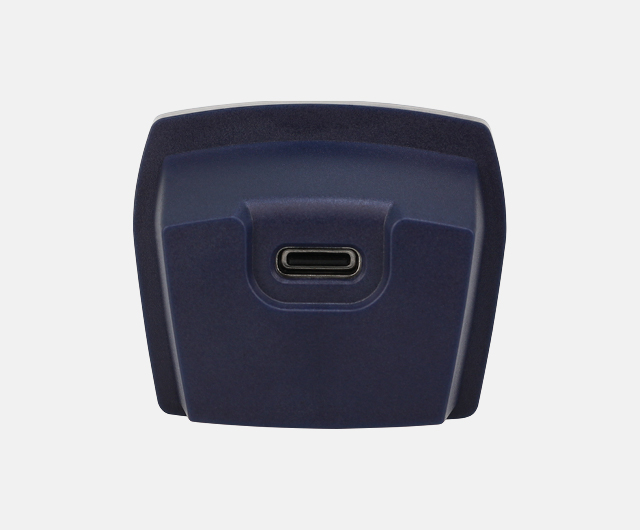

Logger unit IF20 for logging, charging, power supply and firmware update of the CAPBs® device.
The CAPBs® interface logger is available for charging, power supply and firmware update of the CAPBs® device. Additionally the interface unit activates the datalogger functions on the CAPBs® device and in the EuroSoft® live Windows software.
A practical feature is the possibility to configure log profiles with different start and end conditions on the internal memory of the logger unit. This makes the CAPBs® interface logger together with the CAPBs® device the optimal instrument for all long-term measurements.
| General data |
|
| Dimensions H x W x D |
59 x 42 x 35 mm |
| Weight |
approx. 40 g |
| Material housing |
Plastic (PC+ABS) |
| Suitable for CAPBs® device |
yes |
| Suitable for CAPBs® module |
no |
| Connection |
USB-C |
| Memory | 256 MB (600,000 readings) |
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.

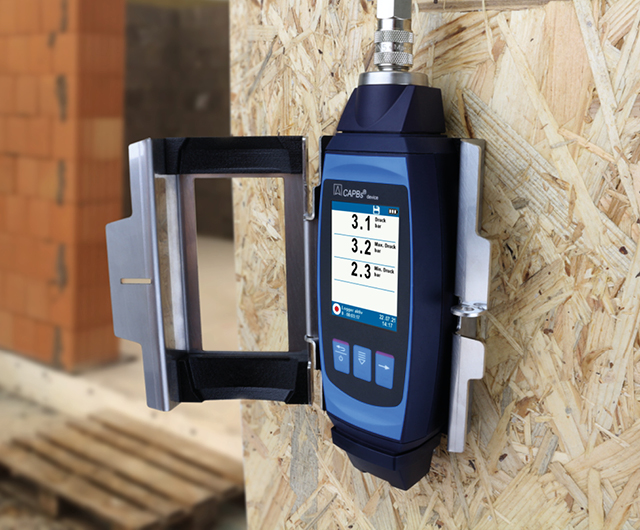

The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.
The CAPBs® device set including the CAPBs® interface basic is a display unit for all CAPBs® sens.
