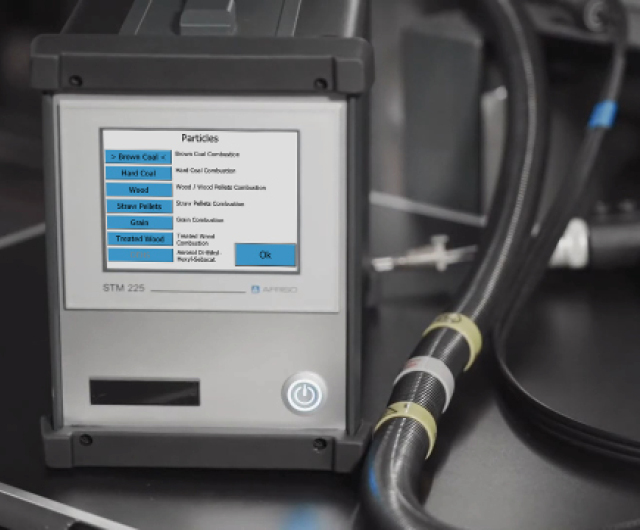

TÜV-tested dust measuring instrument for solid fuel systems such as pellets or wood fired systems for determining the mass concentration of particles/dust and for monitoring the limit values of particulate matter.
TÜV approved for stages 1 and 2, including limit value monitoring 150 mg/m3 for old systems as well as 30-minutes mean value measurement of single room combustion systems. The sampling probe can also be used for tightness tests of the entire gas path. Ideal for chimney sweeps, heating system engineers and service technicians for performing required particulate matter measurements, e.g. as per 1st German Federal Immission Act.
The measuring system determines the dust concentration by means of a state-of-the-art optical scattered light method. This measuring principle provides for fast and accurate measuring results and also allows for real-time diagnostics – independent of external influences such as shocks and impacts. A great feature considering rough field service conditions.
| General data | |
| Dimensions H x W x D | 205 x 275 x 350 mm |
| Weight |
approx. 7.5 kg (instrument) |
| Display type |
Colour touch display 5.7" (14.5 cm) |
| Measuring range |
0 to 300 mg/m3 dust |
| Measured values (via MULTILYZER STx) |
O2: 0 to 21 vol.-% |
| CO/H2: 0 to 12.000 mg/m3 |
|
| CO: 0 to 50.000 mg/m3 |
|
| Resolution |
0.1 mg/m3 |
| Power supply |
AC 230 V, 50 Hz |
| Ingress protection rating |
IP40 (EN 60529) |
| Product brochure |
Cleaning instructions
|
|
 |
 |
|

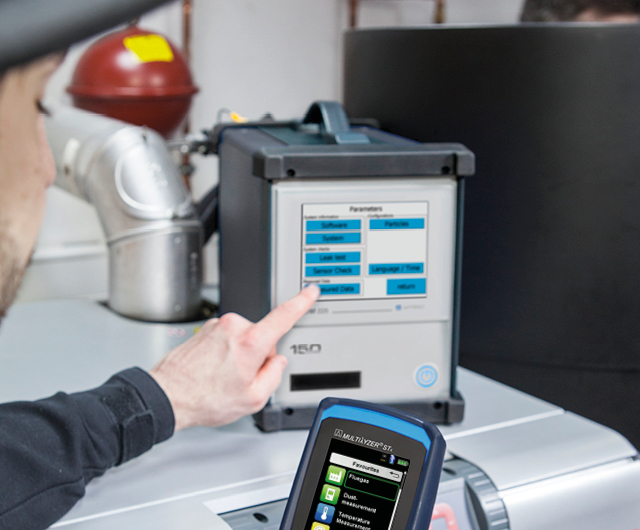

The TÜV-tested MULTILYZER® STx is a handheld measuring instrument for industrial combustion, emission and process monitoring.

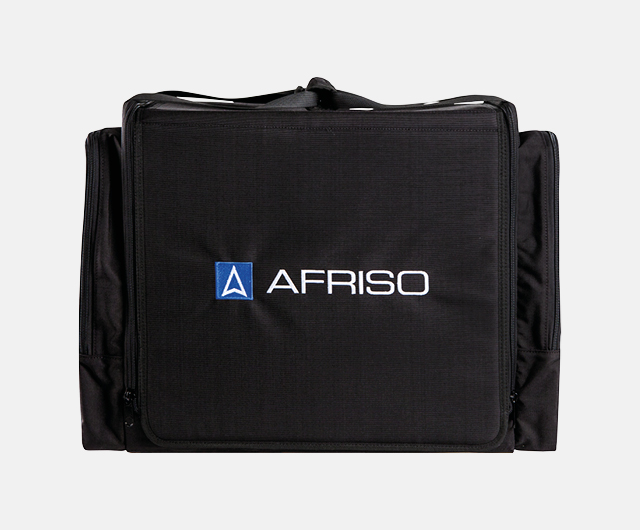

Top quality dust measuring set for determining the mass concentration of particles/dust and for monitoring the limit values of particulate matter on solid fuel systems.
