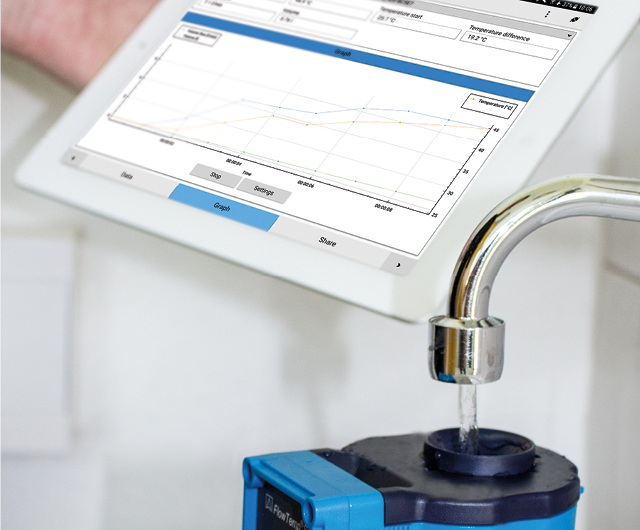

The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Bewerbung
Bewerbung

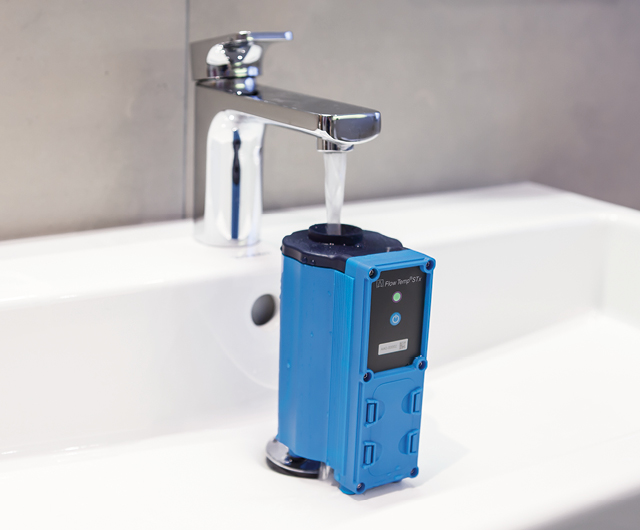

The TÜV tested FlowTemp® STx is a intelligent and compact measuring device for determining the volume flow and water temperature at water taps.
Monitoring, safety and environmental protection are just some of the reasons why flow and temperature measurement at water systems is becoming increasingly important. The FlowTemp® STx is a simple and compact measuring device for determining volume flow and water temperature at water taps. The sophisticated sensor system handles the measurements simultaneously, quickly and precisely.

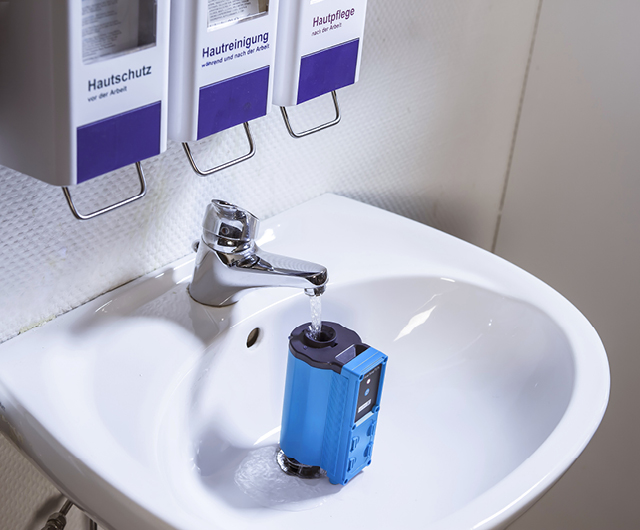

Thermal disinfection to prevent legionella and risk analysis of drinking water systems are just a few examples of measurement applications. The compact design of the FlowTemp® STx allows measurements even on low water fittings.
| General data |
|
| Dimensions H x W x D |
158 x 71 x 97 mm |
| Weight |
approx. 370 g |
| Material housing |
Plastic (PC + ABS) |
| Operation temperature |
5 to 80 °C |
| Storage temperature |
-20 to 80 °C |
| Data interface |
Bluetooth® |
| Power supply |

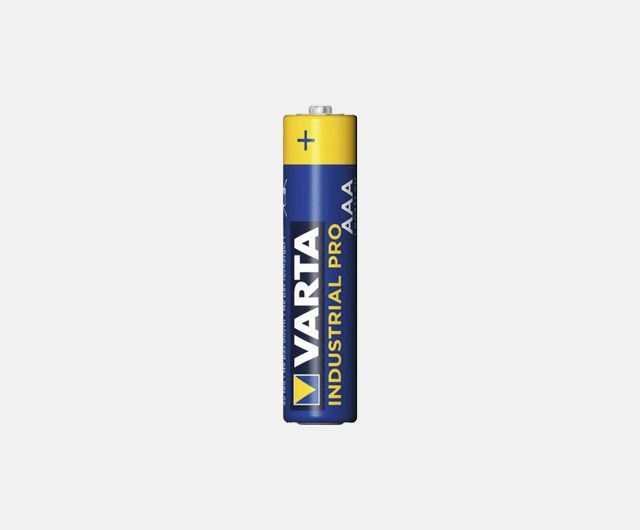

2x AAA batteries |
| Operating time |
up to 50 hours |
| Ingress protection rating |
IP65 and IP67 (standard DIN EN IEC 60529) |
| Technical data |
||
| Temperature |
Volume flow |
|
| Measuring range |
5 to 80 °C |
1.5 to 17.5 l/min |
| Accuracy |
±1 °C or ±3 % RDG |
±0.3 l/min or ±5 % RDG |
| Resolution |
0.1 °C |
0.1 l/min |
| Response delay (t90) |
< 5 seconds |
< 10 seconds |
| Sensor |
PT1000 |
Capacitive sensor |
|
Product brochure
|
|
 |
|
