The TÜV tested FlowTemp® STx is a intelligent and compact measuring device for determining the volume flow and water temperature at water taps.
Bewerbung
Bewerbung

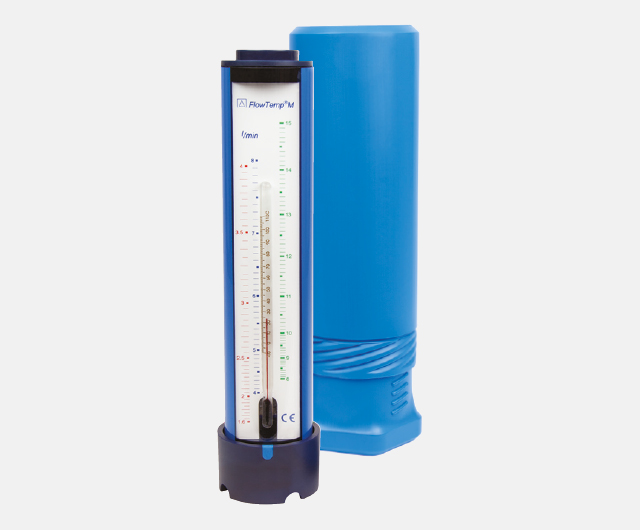

FlowTemp® M is a very robust and high quality instrument for adjusting and optimising tankless water heater.

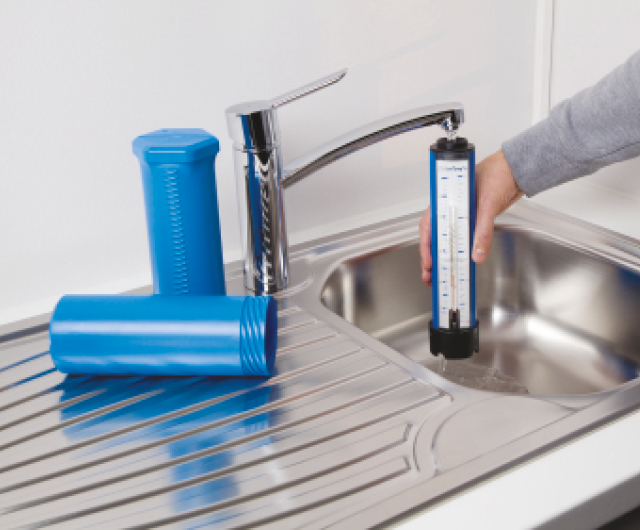

Application example: With a specified capacity of a tankless water heater and fluctuating water pressure, the flow rate may no longer be correct. The flow temperature can be measured simultaneously with the flow rate. This allows optimising the tankless water heater adjustments.

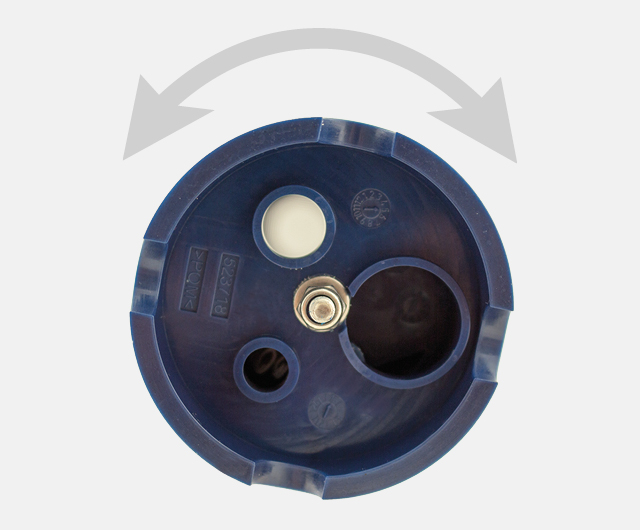

The adjustment options enable settings tuned to the individual tankless water heater. The clear scale ensures easy and precise readings.
| General data |
|
| Dimension H x Ø |
250 x 58 mm |
| Weight |
approx. 232 g |
| Material housing |
Plastic |
| Operating temperature |
0 to 80 °C |
| Storage temperature |
-20 to 80 °C |
| Technical data |
||
| Temperature |
Flow |
|
| Measuring range |
-10 to 110 °C |
1.6 to 15 l/min |
| Accuracy |
±2 °C | ±0.3 l (< 5 l/min) ± 5 % RDG (> 5 l/min) |
| Resolution |
1 °C | 0.05 l/min (< 4 l/min) 0.1 l/min (> 4 l/min) |
| Sensor |
Glass Tube: Kerosene filled | Backwater method with scale |
The TÜV tested FlowTemp® STx is a intelligent and compact measuring device for determining the volume flow and water temperature at water taps.
