Stage stop 3/8" and 3/4" for connecting the test set to the gas pipe
Bewerbung
Bewerbung
Application
For device connection D8 mm. For measuring pressure and vacuum, inlet pressure, flow pressure, static pressure and nozzle pressure. Suitable for tightness test and pressure loss measurement.
| Scope of delivery | |
| 500670 |
Adjusting valve |
| 523082 |
Pumpball with valve |
| 522952 |
Silicon hose 7 x 3,1 mm |
| 500685 |
Connection hose 1000 mm with nipple DN2.7 and coupling DN5 |
| 500679.2 |
Stage stop plug ½" and 1" with connector DN5 |
| 500679.1 |
Stage stop plug â…œ" and ¾" with connector DN5 |

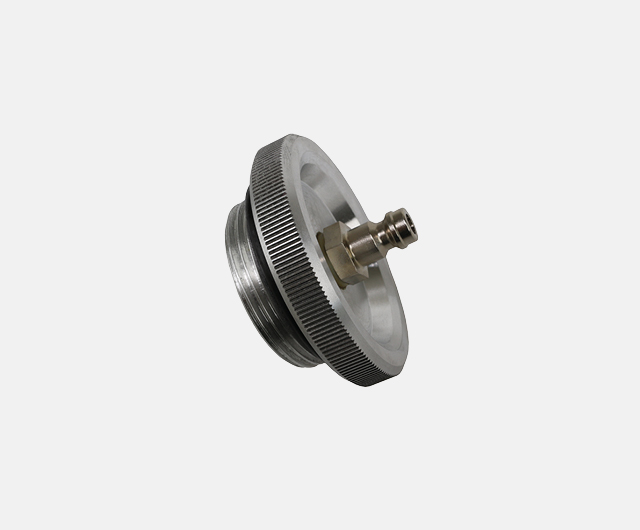

Stage stop 3/8" and 3/4" for connecting the test set to the gas pipe

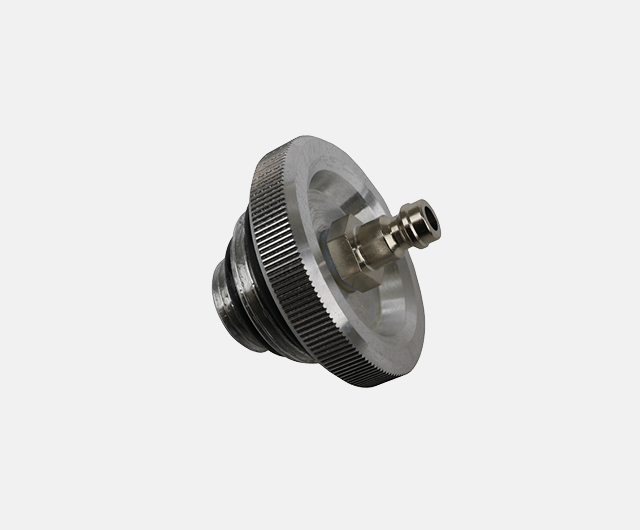

Stage stop plug 1/2" and 1" for connecting the test set to the gas pipe
Cylindrical test plug 1/2" for connecting test set to the gas pipe
Cylindrical test plug 3/4" for connecting test set to the gas pipe
Cylindrical test plug 1" for connecting test set to the gas pipe
Cylindrical test plug 1 1/4" for connecting test set to the gas pipe

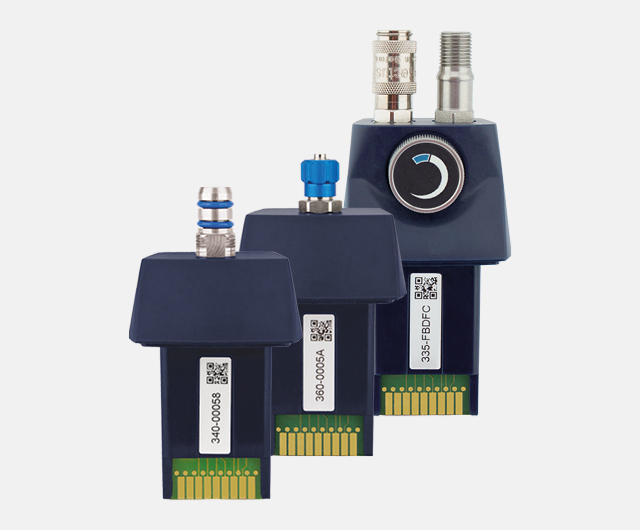

Sensor unit for measuring the pressure, vacuum and differential pressure of non-corrosive, gaseous, dry media. This pressure sensor measures up to 180 hPa, and features two D8 pressure connections.
Sensor unit for leaktightness and load testing up to 6 bar test pressure. The high quality sensors are extremely accurate, orientation independent and temperature compensated.
The TÜV-tested EUROLYZER® S1 convinces with a flexible operating concept, standard-compliant documentation options and robustness like never before.
The state of the art BlueLine® S4600 ST pressure measuring instruments feature Bluetooth®, QR code and microSD for data transmission.
