Sensor unit for leaktightness and load testing up to 6 bar test pressure. The high quality sensors are extremely accurate, orientation independent and temperature compensated.
Application:
Sensor unit for measurement of pressure, vacuum of non-corrosive, gaseous, dry media. The high quality sensors are extremely accurate, orientation independent and temperature compensated.
| General data |
|
| Dimensions H x W x D |
PS40: 74 x 42 x 35 mm |
| PS41: 74 x 42 x 35 mm |
|
| PS42: 89 x 42 x 35 mm |
|
| Weight |
PS40: approx. 34 g |
| PS41: approx. 30 g |
|
| PS42: approx. 100 g |
|
| Measurement units |
hPa, mbar, kPa, mmWs, mmHg, bar, inHg, psi |
| Medium |
non-aggressive gases |
| Measuring range |
6 bar |
| Accuracy |
±5 hPa or 0.5 % RDG ±1 digit |
| Resolution |
0.1 hPa (< 1000) |
| 1 hPa (> 1000) |
|
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |

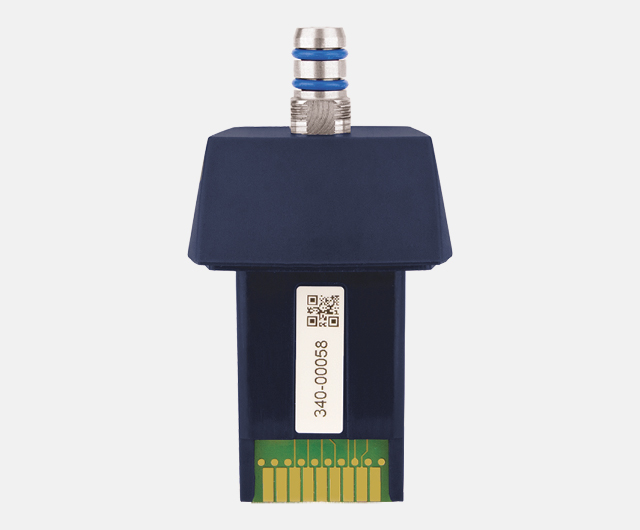

PS40: 1x D8 |

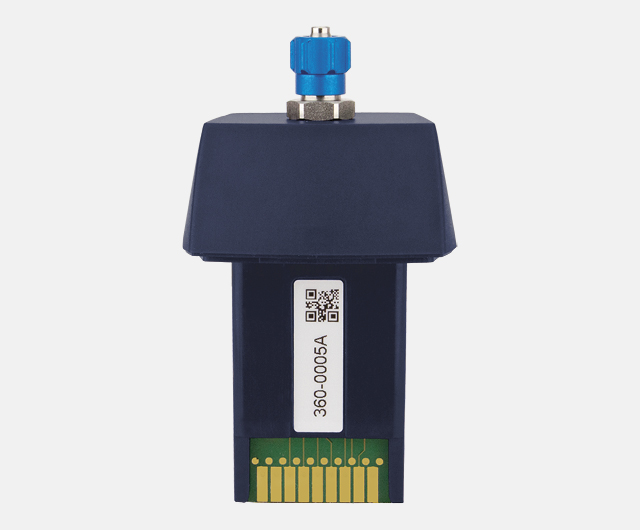

| PS41: 1x F3 |
|

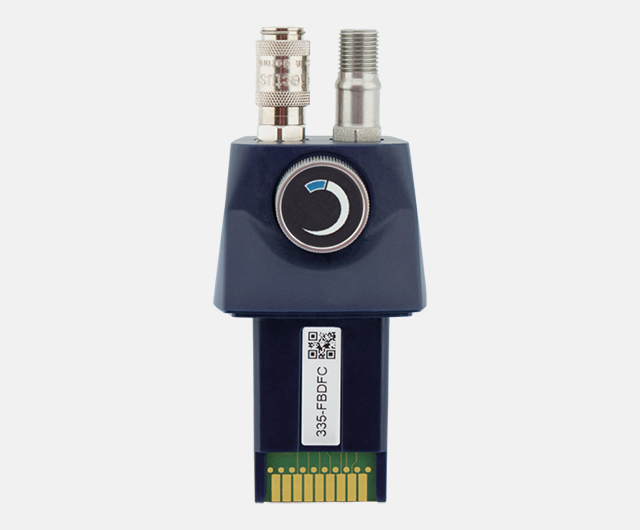

| PS42: coupling DN2.7 and car valve |
|
| Battery life |
CAPBs module: 45 h / 32 h (rechargeable) |
| CAPBs device: 15 h |
|
| BlueLine CAPBs program |
Pressure, Pressure loss, Tightness test, Leakage rate measurement |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
