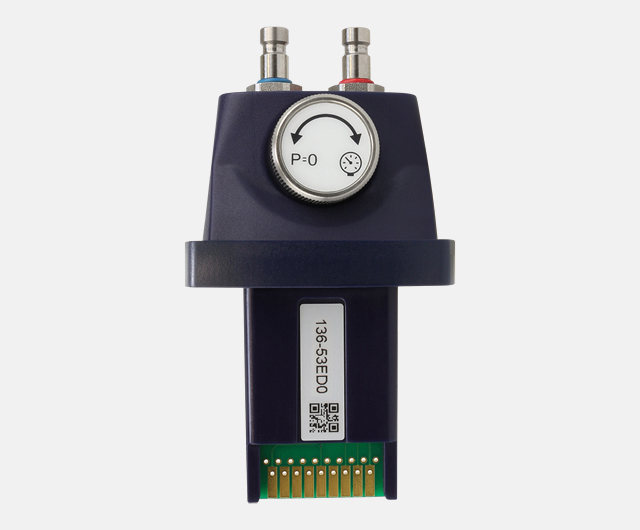

Sensor unit for measurement of the pressure, vacuum and differential pressure of gaseous and liquid media. This pressure sensor measures up to 7 bar.
Application
Sensor unit for measurement of pressure, vacuum and differential pressure of liquids and gaseous media. High quality sensor with wide measurement range and high accuracy. Bypass system to vent the measurment system at liquid applications.
| General data |
|
| Dimensions H x W x D |
80 x 42 x 35 mm |
| Weight |
approx. 95 g |
| Measurement units |
hPa, mbar, kPa, mmWs, mmHg, bar, inHg, psi |
| Medium |
Non-aggressive liquids and gases |
| Measuring range |
7 bar |
| Accuracy |
±10 hPa or 1 % RDG |
| Resolution |
0.1 hPa (< 1000) |
| 1 hPa (> 1000) |
|
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |
2x DIN2.7 |
| Battery life |
32 h / 24 h (rechargeable) |
| BlueLine CAPBs program |
Pressure, Pressure loss, Tightness test |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
Connection overview | |
 |
 |
|
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.

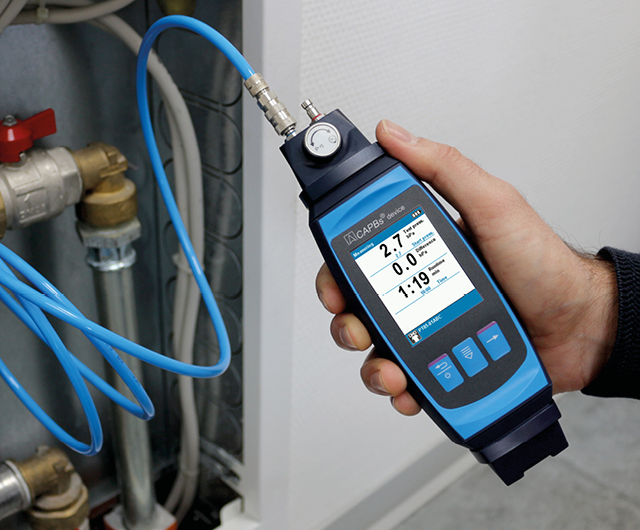

The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.

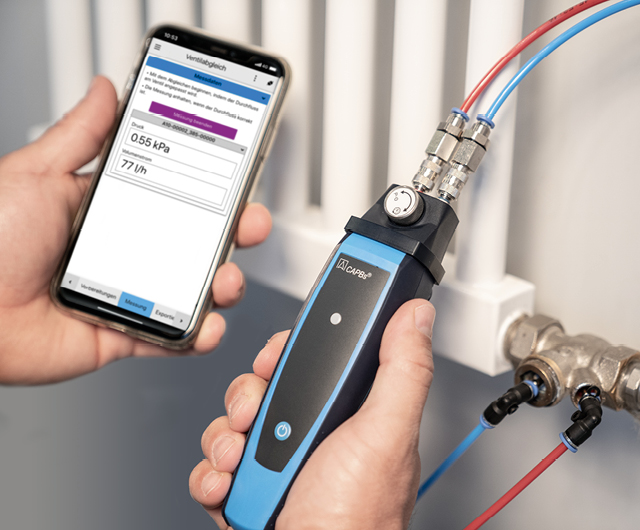

Universal base handle for all CAPBs® sens sensor units, with direct Bluetooth® connection to the EuroSoft® live app, which is available on both the Android and iOS platforms.
