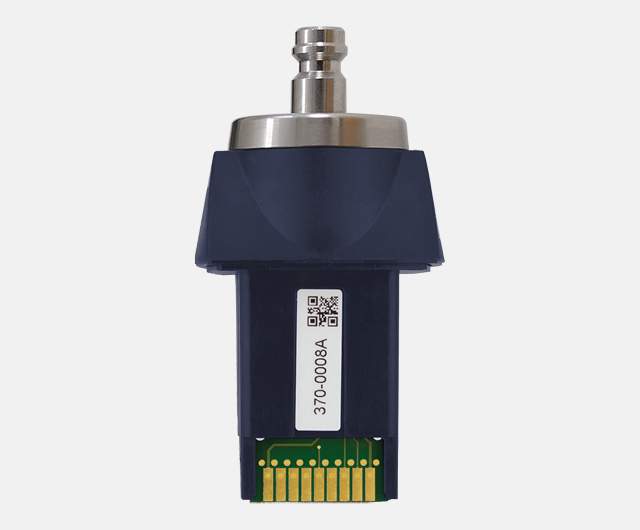

Sensor unit for leaktightness, load and stress testing up to 25 bar test pressure. Pressure transmitter for measurements in gaseous and liquid media.
Application
Pressure transmitter for measurements in liquids and gaseous media.
| General data |
|
| Dimensions H x W x D |
76 x 42 x 35 mm |
| Weight |
approx. 55 g |
| Measurement units |
bar, kPa, psi |
| Medium |
Liquids and aggressive gases |
| Measuring range |
0 to 25 bar |
| Accuracy |
0.5 % full scale ±1 digit |
| Resolution |
0.1 bar |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |
DN5 |
| Battery life |
32 h / 24 h (rechargeable) |
| BlueLine CAPBs program |
Pressure, Pressure loss, Tightness test |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
Connection overview
|
||
 |
 |
 |
|
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.

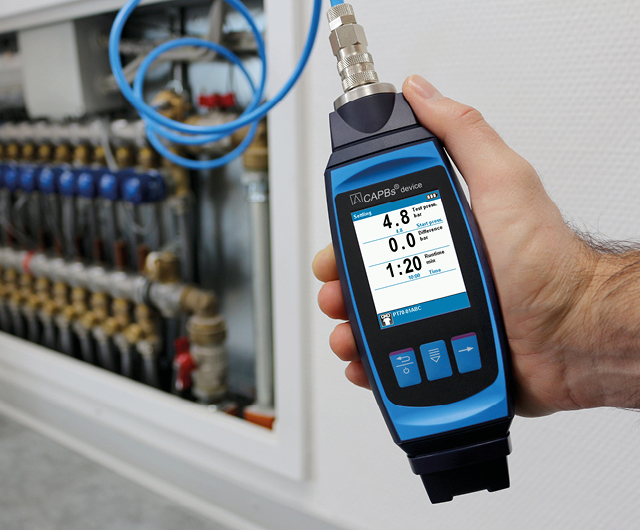

The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.

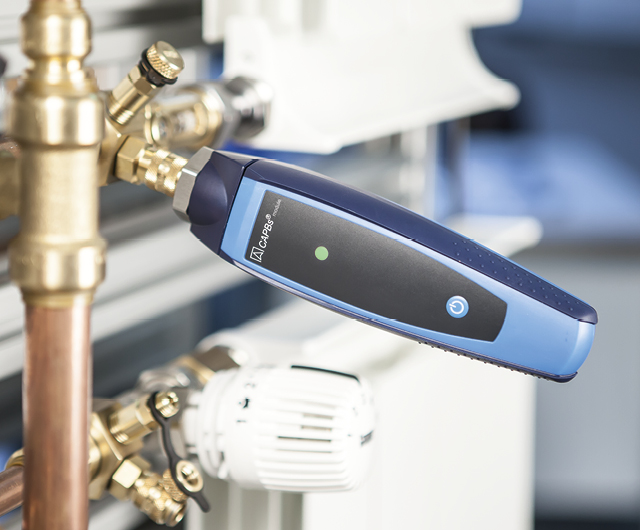

Universal base handle for all CAPBs® sens sensor units, with direct Bluetooth® connection to the EuroSoft® live app, which is available on both the Android and iOS platforms.
