The free EuroSoft® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Bewerbung
Bewerbung

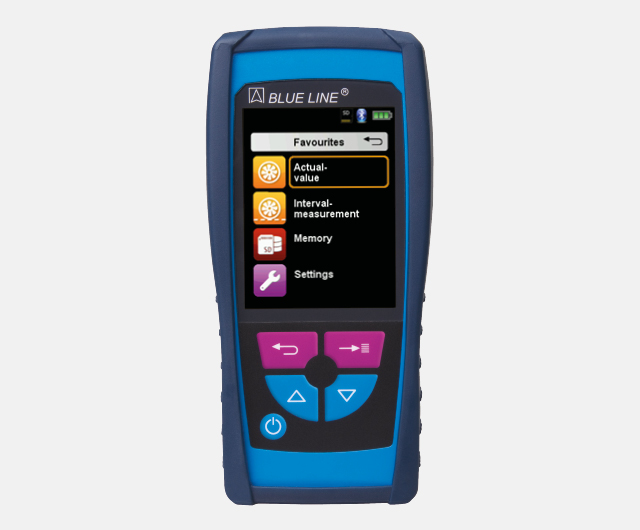

BlueAir-ST® is ideally suited for measuring air flow, temperature and humidity, as well for state of the art data transmission via Bluetooth®, QR code and microSD card.

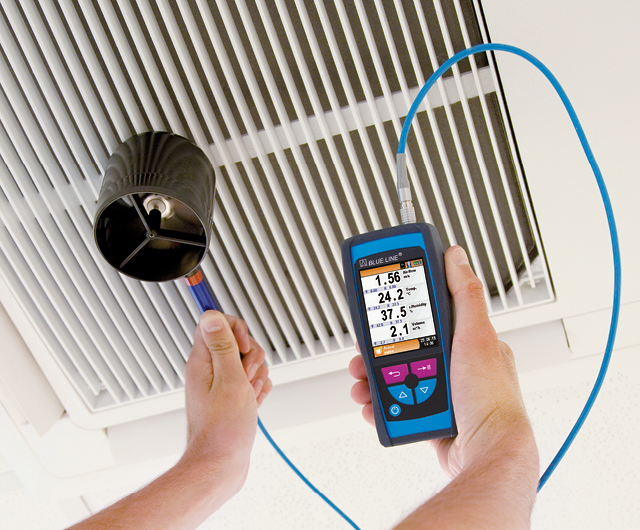

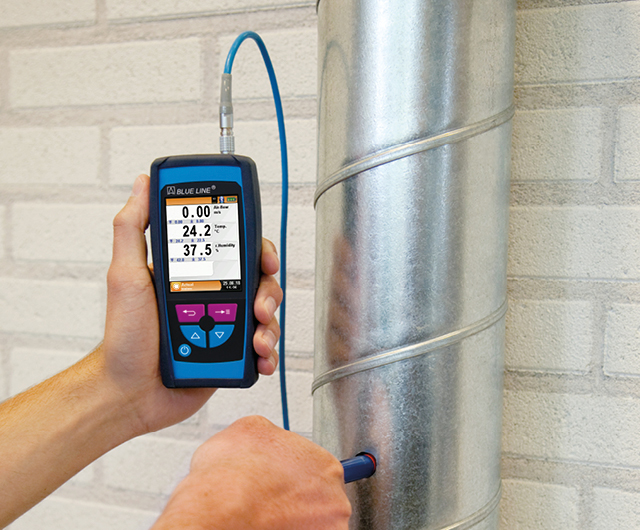

BlueAir-ST® is the perfect companion for measuring and adjusting ventilation systems, for measuring climatic conditions in rooms and for airflow measurements under field conditions.
With the BlueLine® series measuring instruments, you take advantage of the latest data transmission technology. The measurement results are transferred reliably and fast to tablets, smartphones or PCs with Bluetooth®. The EuroSoft® connect App is the ideal tool when it comes to evaluating, storing and viewing the measurement results on your device. EuroSoft® connect is available for Android, iOS and Windows. In addition, the BlueLine® series measuring instruments feature a microSD slot so that you can save your measurement results on it. In terms of the "Internet of Things" (IoT), the measuring instruments of the BlueLine® series feature a QR code generator. It generates codes of the measurement results for fast transmission to mobile devices and transfer via e-mail, cloud services, etc..
| General data |
|
| Dimensions H x W x D |
143 x 66 x 37 mm (incl. protective sleeve) |
| Weight |
approx. 220 g |
| Display type |
2.8" TFT (240 x 320 pixels) |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Data interface | Bluetooth® QR code generator microSD card Wireless infrared connection with optional EUROprinter |
| Power supply |
Mini USB mains unit (5 V) |
| Battery type | Rechargeable lithium-ion battery 3.6 V / 1,800 mAh |
| Operation time |
up to 20 hours in normal-modus |
| up to 30 hours in auto-modus |
|
| up to 40 hours in eco-modus |
|
| Memory type | microSD card |
| Ingress protection rating |
IP40 |
|
Product brochure
|
 |
The free EuroSoft® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
The EuroSoft® connect software allows you to transmit measured values to the PC via microSD card and control the instrument remote via Bluetooth®.
Compact infrared high speed thermal printer with magnets on the rear side

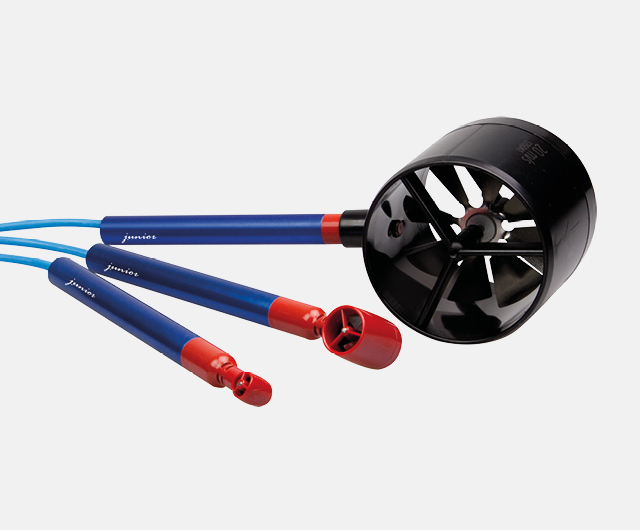

Sensor unit for air flow speed and volumetric flow rate and temperature measurement. Also for 4-Pa testing using the CAPBs® module.
Sensor unit for measuring fine pressure and differential pressure up to 20 hPa. Also designed for accurate air-flow measurements using a Pitot tube.
