Systronik

BlueAir-ST® Starter Set - micro

P00023

BlueAir-ST® set for checking and setting the air velocity of ventilation and air conditioning systems and fans and for measurements in ventilation and exhaust ducts.




Back


  • Clearly structured measurement programs, simultaneous display of 4 measured values

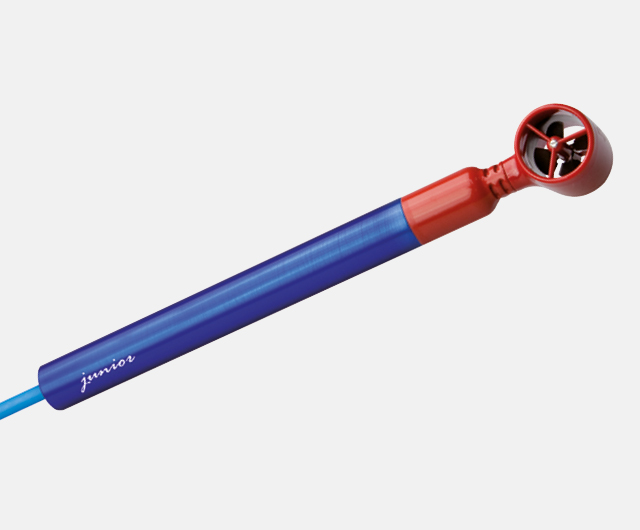

  • Junior mini vane probe (diameter 22 mm)
  • Features Bluetooth® and QR code data transmission to the EuroSoft® connect app
  • Calculation of air volume after you have entered the channel cross section

The BlueAir-ST® Starter Set - micro perform very accurate measurements of air velocity and therefore ideally suited for checking and setting the air velocity of ventilation and air conditioning systems and fans and for measurements in ventilation and exhaust ducts.



Scope of delivery
M080002016
BlueAir-ST® velocity meter
523493
 Power supply unit
523506
 Charging cable
524318
 Rotating vane anemometer Junior micro 20 m/s
511035
 Option: Datalogger
511035
 microSD card 4 GB with card reader
523603
 Case



  Starter Set - micro
 Starter Set - mini
 Starter Set - macro
Part no.
 P00023
 P00022
 P00024
Vane probe
 Junior micro
 Junior mini
 Junior macro
Measuring range
 0.6 to 20 m/s
 0.4 to 20 m/s
 0.3 to 20 m/s
Accuracy
 ± 2.0 % full scale
 ± 1.0 % full scale
 ± 1.0 % full scale
± 5.0 % RDG
 ± 3.0 % RDG
 ± 3.0 % RDG
Resolution
 0.01 m/s
 0.01 m/s
 0.01 m/s
Sensor dimensions
 Ø 11 mm x 15 mm
 Ø 22 mm x 28 mm
 Ø 85 mm x 80 mm
Probe length
 165 mm
 175 mm
 235 mm
Cable length
 1.5 m
 1.5 m
 1.5 m
