SYSTRONIK Elektronik und Systemtechnik GmbH

BlueAir-ST^® Starter Set - mini

P00022

BlueAir-ST^®set for checking and setting the air velocity of ventilation and air conditioning systems and fans and for measurements in ventilation and exhaust ducts.

Back

Clearly structured measurement programs, simultaneous display of 4 measured values

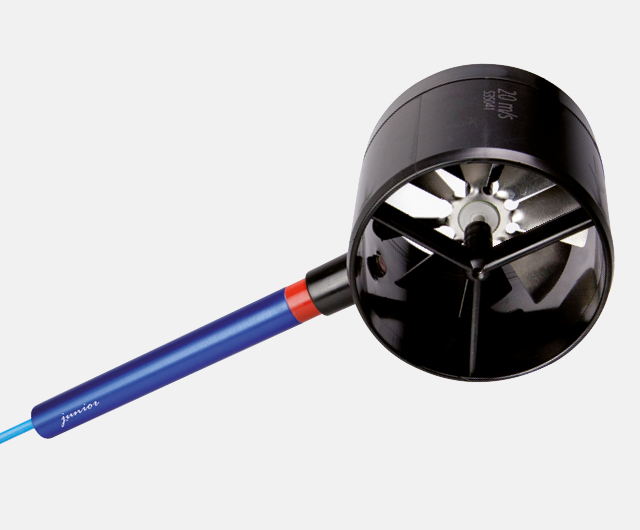

Junior mini vane probe (diameter 22 mm)
Features Bluetooth^® and QR code data transmission to the EuroSoft^® mobile app
Calculation of air volume after you have entered the channel cross section

The BlueAir-ST^® Starter Set - mini perform very accurate measurements of air velocity and therefore ideally suited for checking and setting the air velocity of ventilation and air conditioning systems and fans and for measurements in ventilation and exhaust ducts.

Scope of delivery
M080002016	BlueAir-ST^® velocity meter
523493	Power supply unit
523506	Charging cable
524319	Rotating vane anemometer Junior mini 20 m/s
511035	Option: Datalogger
511035	microSD Card 4 GB with card reader
523603	Case

	Starter Set - micro	Starter Set - mini	Starter Set - macro
Part no.	P00023	P00022	P00024
Vane probe	Junior micro	Junior mini	Junior macro
Measuring range	0.6 to 20 m/s	0.4 to 20 m/s	0.3 to 20 m/s
Accuracy	± 2.0 % full scale	± 1.0 % full scale	± 1.0 % full scale
Accuracy	± 5.0 % RDG	± 3.0 % RDG	± 3.0 % RDG
Resolution	0.01 m/s	0.01 m/s	0.01 m/s
Sensor dimensions	Ø 11 mm x 15 mm	Ø 22 mm x 28 mm	Ø 85 mm x 80 mm
Probe length	165 mm	175 mm	235 mm
Cable length	1.5 m	1.5 m	1.5 m

EuroSoft^® connect for iOS and Android

The free EuroSoft^® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth^®.
